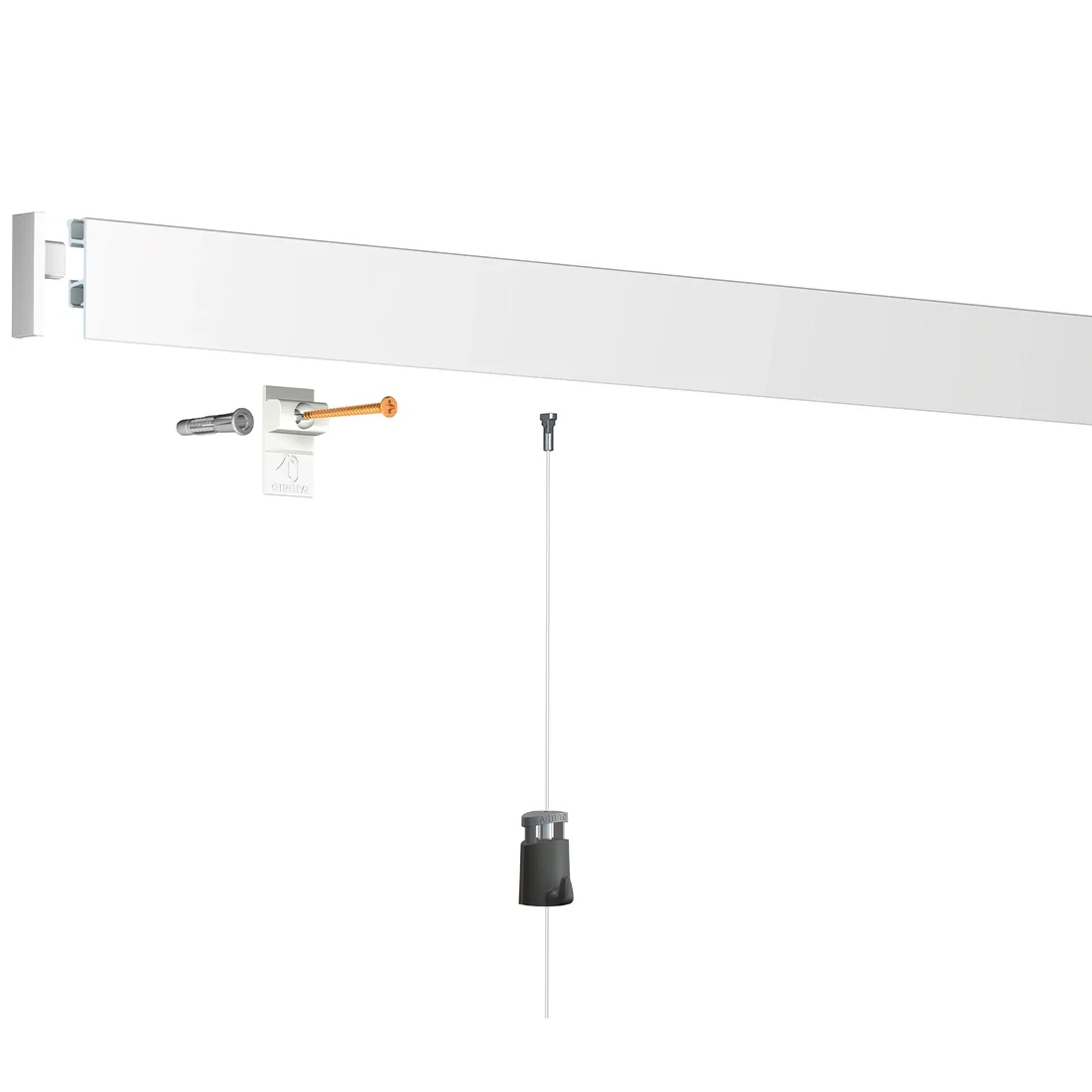

The Artiteq Click Rail Pro is a heavy-duty picture hanging system designed for safely displaying heavier paintings, framed artwork and wall decorations. Its strong, discreet design makes it suitable for art galleries, museums, offices and commercial interiors where reliable artwork suspension is essential.

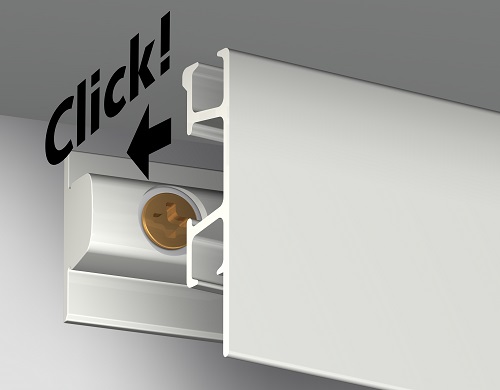

The rail can be installed using Click & Connect clips and can also be mounted flush with the ceiling, depending on the installation requirements. Once installed, compatible hanging wires and hooks can be repositioned along the rail, making it easy to adapt displays without repeatedly drilling new holes.
Available in White Primer (paintable) and brushed aluminium, each rail measures 200 cm long, 37.5 mm high and 9.5 mm wide. It supports a maximum load of 50 kg per running metre, subject to correct installation and the specifications of the complete hanging system.
Installation tip: The rail can be cut to the required length using a suitable hacksaw or grinder.
Heavy-Duty Picture Hanging for Professional Spaces

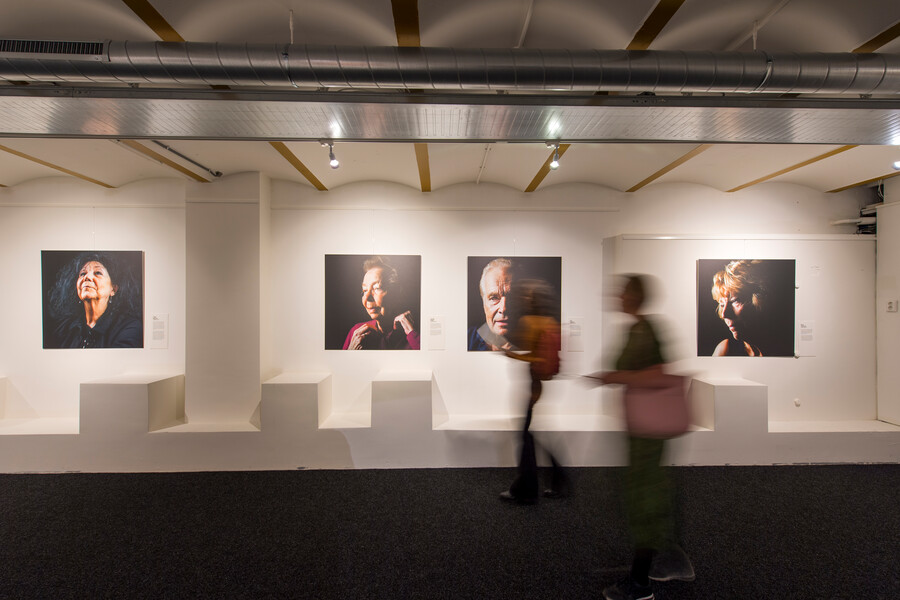

Click Rail Pro is suited to galleries, museums, offices and other environments where heavier artwork needs a flexible hanging solution. Its high load capacity makes it a useful option for installations that require more support than a standard picture hanging rail.
Click Rail Pro Specifications
- Finish: White Primer (paintable) or brushed aluminium
- Length: 200 cm
- Height: 37.5 mm
- Width: 9.5 mm
- Maximum load: 50 kg per running metre
- Installation: Click & Connect clips; flush-to-ceiling installation where suitable
Complete Your Picture Hanging System

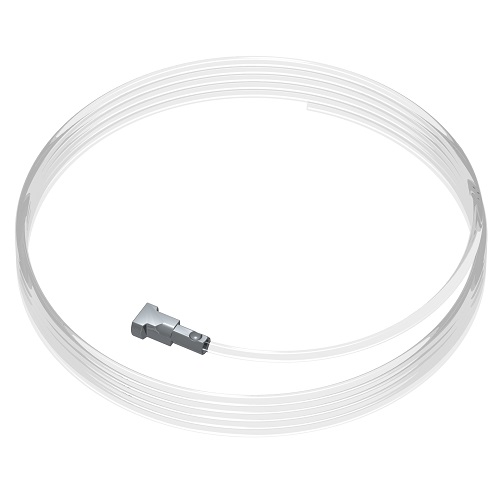

Choose compatible picture hanging wires and picture hanging hooks to complete your installation. If your project involves standard artwork displays, compare the Click Rail picture hanging system.
Technical Downloads
Download the technical documentation and installation instructions for the Artiteq Click Rail Pro heavy-duty picture hanging system.
